Guilin Microtech Optical Instrument Co., Ltd. (MTO)

Phone：+86-773-5823609

PRODUCT

Auxiliary objectives

Auxiliary objectives used in MZD series:

   Model：0.5X、0.7X、2X auxiliary
     objectives

   Introduction：
      Connect the auxiliary objective under the MZD series zoom
   monocular video microscope systems, can change the total
    magnification and the working?distance. User can select it
   according to the magnification?and working distance.
   Working distance:
       D-W0.5 :195mm
       D-W0.7 :145mm
       D-W2.0 :35mm

DH-W0.5 exemplify

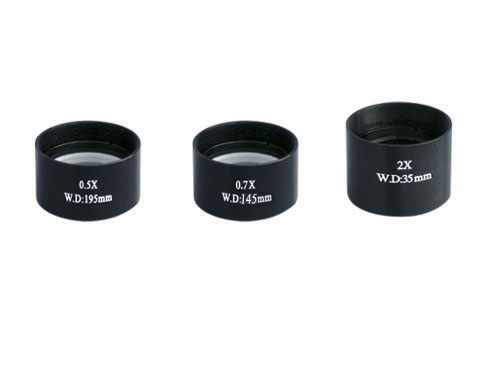

D-W0.5、D-W0.7、D-W2.0

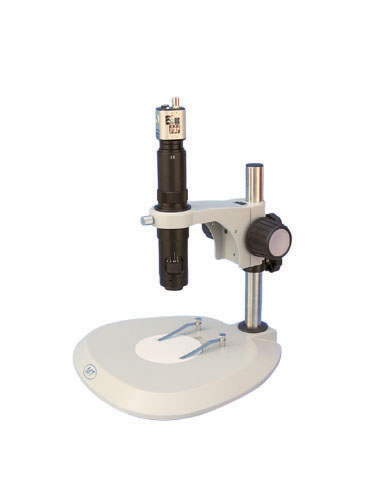

MZD0745（+DH-W0.5）


Auxiliary objectives used in MZDH series:

   Model：0.3X、0.5X、0.75X、0.9X、1X、1.5X、2X、4.5X auxiliary objectives

   Introduction：
       Connect the auxiliary objective under the MZD series zoom monocular video microscope systems, can change the total magnification and the working distance. User can select it according to the magnification and working distance.
   Working distance:


            DH-W0.3 : 293mm

                DH-W0.4 : 223mm

    　        DH-W0.5 : 175mm

                DH-W0.6 : 145mm

            DH-W0.75 :117mm
            DH-W0.9 : 93mm
           DH-W1.0 : 83mm
           DH-W1.5 : 54mm
           DH-W2.0 :35mm
　       DH-WP4.5 : 16mm


DH-W0.75 exemplify

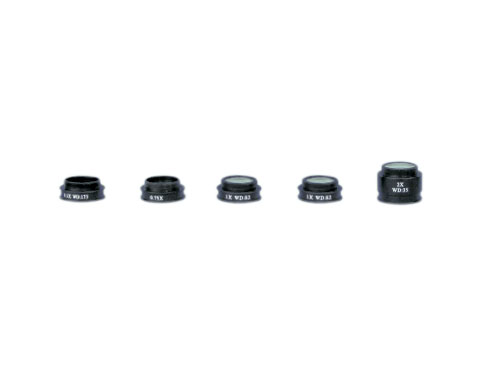

DH-W0.5、DH-W0.75、
DH-W1.0、DH-W1.5X、DH-W2.0

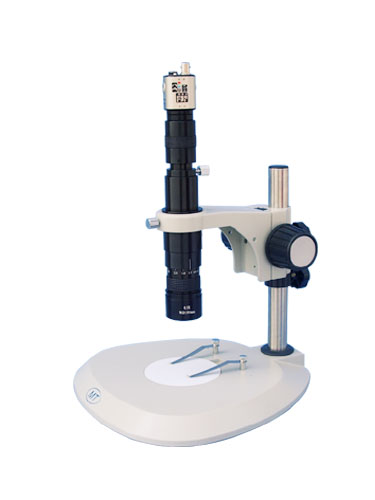

MZDH0850（+DH-W0.75）
